Max Static Load : 4000 kg
Load Capacity : As per Table
Gear Ratio : 45:1
Brake : 110/220 DC
Traction Sheave : 510/530/560 mm
Rope Size : 8/10/13 mm
Oil Capacity : 4 Ltr.
Weight Of Unit : 275 Kg*
(with BedPlate)
*Weight of the machine varies according to selection of sheave, motor etc.
Subject to change without notice

Technical Specification

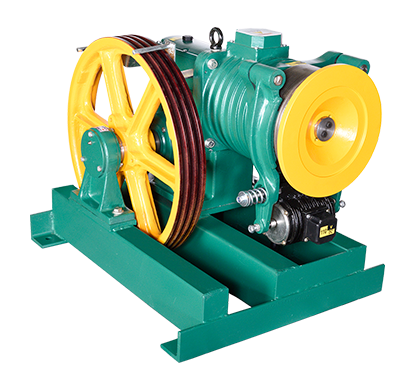

Machine Features

  • Compact and functional machine specially designed for the 8 passengers lift and speed up to 1m/s
  • Prefect adaptability to all instillation requirements including MRL jobs.
  • Traction sheaves with undercut grove and controlled hardness for increased wear resistance.
  • Dynamically balanced high-speed parts for smooth operation.
  • Centrifugally cast gear for longer life.
  • Factory load tested and check for extreme condition.
  • Worms and gears hardened and ground for smooth operation.
  • All parts manufactured to precision and interchangeability.

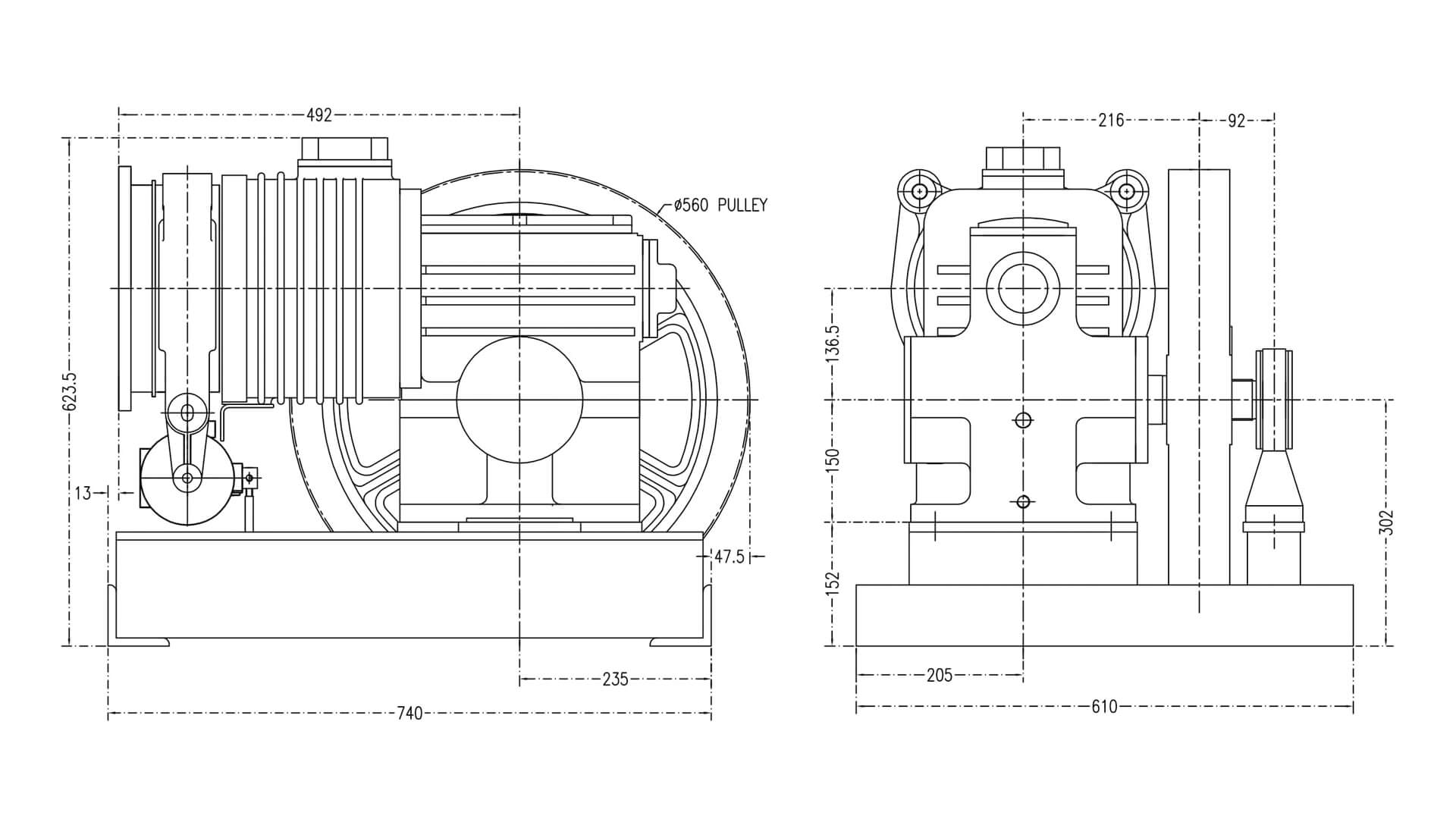

Technical Drawings

Machine Static Load (Kg) Load Speed (m/s) Sheave Roping Motor Travel Height (m)
No. of Passenger Kg Dia (mm) Rope No. Rope Dia (mm) RPM KW HP Pole
AT-1365 4000 6 408 0.95 560 3 13 1:1 1440 4.4 6 4 30
AT-1365 4000 8 544 0.65 560 3 13 1:1 960 5.2 7 6 30
AT-1365 4000 8 544 0.95 560 3 13 1:1 1440 5.9 8 4 30
AT-1365 4000 Goods Lift 1000 0.5 560 3 13 2:1 1440 5.9 8 4 30
Kindly contact us for various load and speed combinations
Subject to change without notice		 marutielevator@gmail.com
